Product
Arm Span
  • no limit
  • Within 1.5 meters
  • Within 2 meters
  • Within 2.5 meters
  • Within 3 meters
  • Within 4 meters
Load
  • no limit
  • Within 10kg
  • Within 30kg
  • Within 50kg
  • Within 100kg
  • Within 200kg
  • Within 400kg
Selection tool
Hey, hello
What can I do to help?

Leave us a message

Please leave a message
CRP-RA20-12-J
Describe
The laser welding robot consists of the robot body and the electrical cabinet,and is shipped with the laser welding software package.lt is primarily used for applications such as laser welding, laser cutting,and laser cladding.
CHARACTERISTICS OF ROBOT PERFORMANCE

  • A specialized interface for laser welding,featuring controllable power, wire feeding,soft start and stop, pre-laser emission and decay, wire sticking detection, pre-wire extraction, and wire replenishment, etc.

  • Rigid, high precision, low jitter.

  • It can control the wire feeding of servo or stepper motors.

  • Using a vertical teaching pendant, the efficiency of robot programming is higher.

  • Compact electrical cabinet, small in size, can be integrated into the laser host.

  • Single-phase 220V input power supply,easy and quick to connect.

  • Built-in UPS, supports power regeneration after outage.

  • Entity: RA15-12-J/RA18-20-J/RA20-12-J

  • Electrical cabinet: G5A

  • Teaching Pendant: Vertical Teaching Pendant, cable length 6 meters

  • Operation box: 2 (with 5-meter cable)

  • Control cabinet and main body interconnection cable 5 meters

  • Welding wire drum and stand

  • Optional two external axes

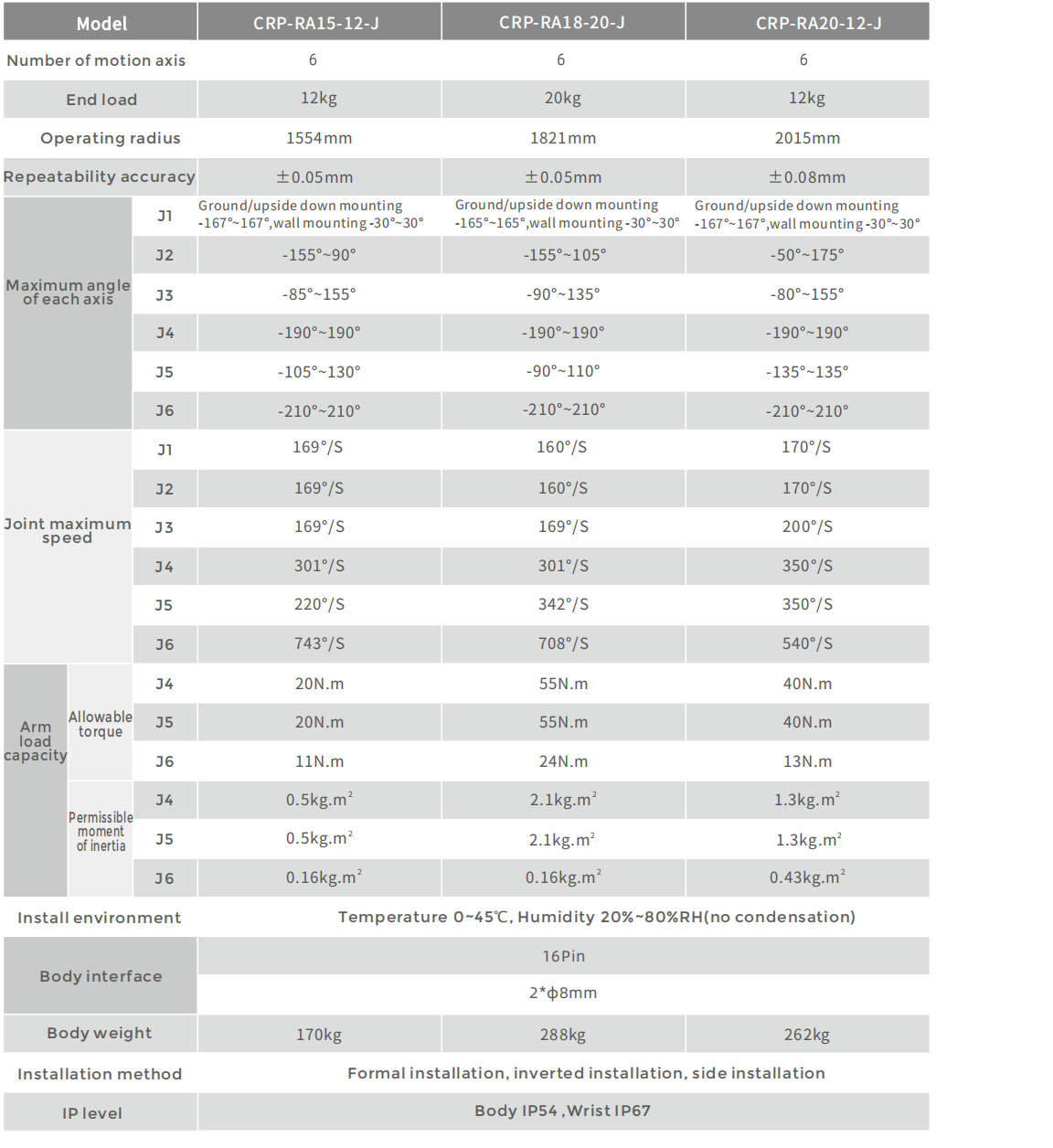

ROBOT BODYTECHNICAL PARAMETERS

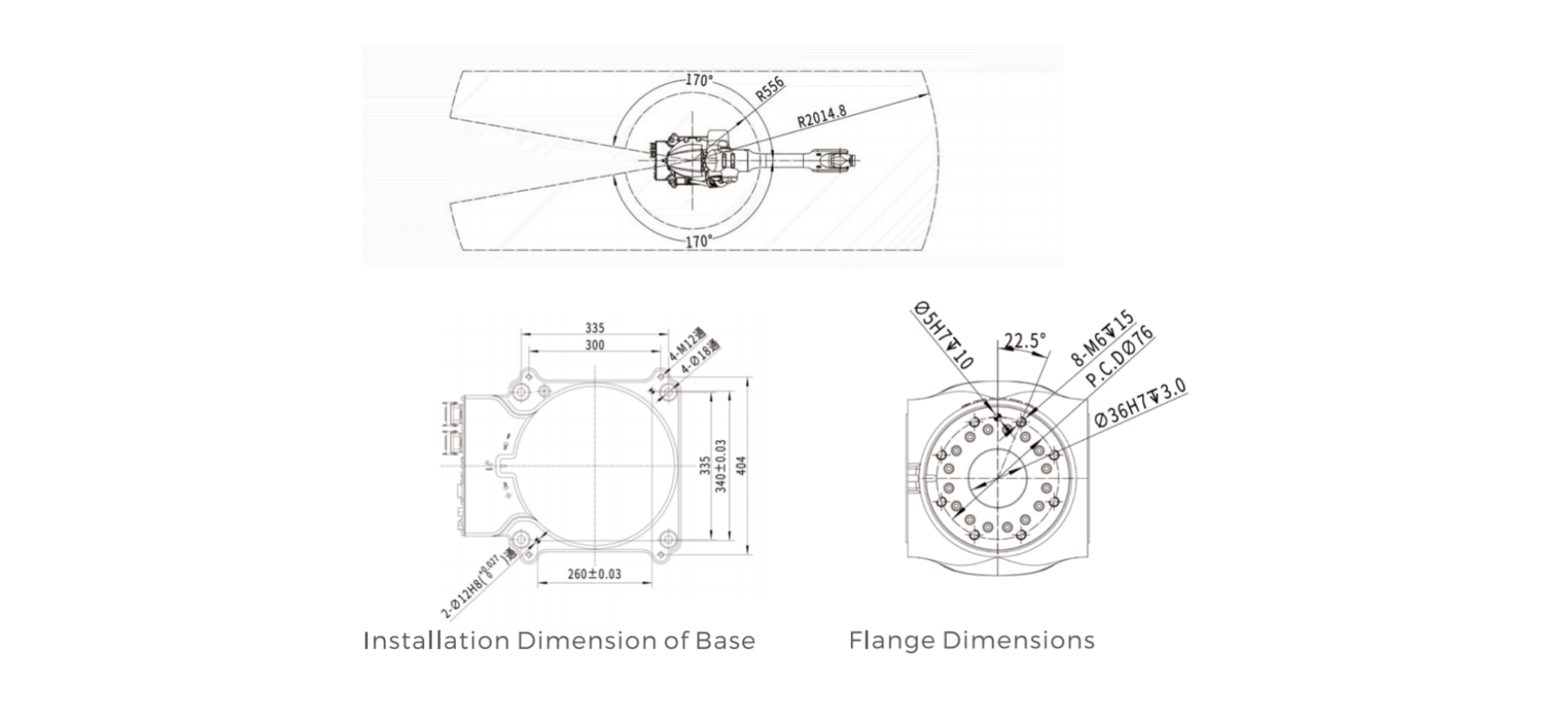

INSTALLATION INTERFACE DIAGRAM

MOTION RANGE DIAGRAM
